The Accu-Keyer, by James M. Garett, WB4VVF

The Accu-Keyer Features
Self-completing Dots and Dashes
Dot and Dash Memories
Iambic Operation
Dot and Dash Insertion
Automatic Character Space
5-50 WPM Speed Range
Low Cost

Probably, one of the keyers that has seen the most print, is the Accu-Keyer, by James M. Garett, WB4VVF. This keyer was initially published in the August 1973 issue of QST Magazine, and it was a big sensation. Over the years, the Accu-Keyer has seen 20 or 30 articles directly addressing the Accu-Keyer. Some of those articles were just add-ons, like a side tone generator or a keying alternative. But some of the articles were fixes for inherent problems with the keyer.

The original was designed with standard SN7400 series ICs. However, Gene Hinkle, WA5KPG, came up with a CMOS (CD4000 series) version in the August 1975 issue of 73 Magazine. The two versions are mostly identical. The CMOS version was aimed at the QRP crowd, but could be used by anyone. You just had to be careful, because CMOS was sensitive to external fields.

The Accu-Keyer design also appeared in the 1979 issue of the ARRL Radio Amateurs Handbook (56th Edition). It is important to note that there is an error in the schematic. However, it looks like the printed circuit board for the Accu-Keyer is correct. On earlier pages, in that same handbook, there is information on the Accu-Memory that includes a led message display.

So I thought it might be interesting to look into the original design and some of the upgrades. I could readily build an Accu-Keyer and poke at it with my oscilloscope. But I thought it would be more informative, and easier to experiment with, if I wrote a Verilog simulation. Since the keyer is not a imbedded microprocessor, it isn't that difficult. So I did. But to be clear, I only included the keyer logic. Trying to include the side tone generator or keying circuitry wouldn't be productive.

Note, I am not going to go into a detailed explanation of the keyer circuit. I will keep my discussion relatively high level. I you need a detailed explanation, obtain a copy of the original article. It is available on various web sites. A simple Google search should be all you need. While I have copies of everything, I don't want anyone complaining about copyrighted documents.

---

Below is a redraw of the Block Diagram for Accu-Keyer. The diagram shows the general flow of the keyer logic. Each block is annotated with the IC reference designators to make it easier to follow the schematic and the timing diagram.

---

Below is a redraw of the Timing Diagram for the Accu-Keyer. The quality of the copy that I have is pretty bad in places, so I recreated the timing diagram as best I could. The diagram show 20 clock periods of the keyer and basically reads from the bottom to the top. All action starts with the tap of the Dot Paddle, at T1, for the start of the letter A, T1 → T6. T6 → T9 is the space between two letters. You can see that, even though the Dash Paddle is closed prior to T9, the Auto Space insures that the Dash is not started until the correct spacing is achieved. You could close the Dash Paddle later than T9. But all that would do is increase the space between letters. T9 → T18 is the sending of the letter B. T18 → T21 is the space after the letter B.

---

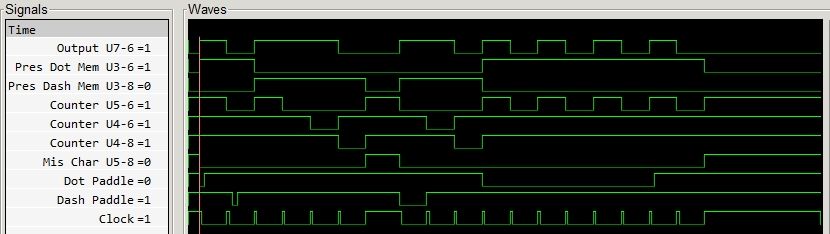

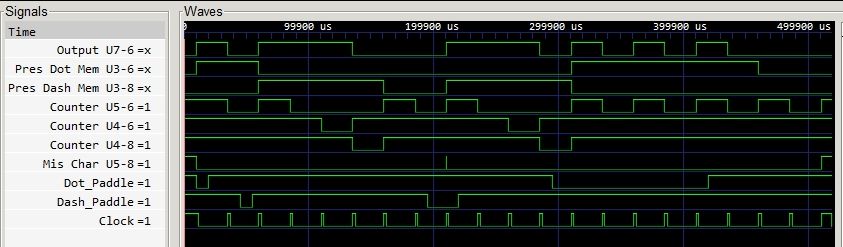

If you adjust the simulation stimulus (that is the dot/dash paddle times) to that of the timing chart above, the simulation output exactly matched the original article. The image below is taken from the output of the simulation. I aliased the signals so that they match the original. As with the original timing diagram, the simulation sends the letters A and B and Auto Letter Space is enabled. The total simulation time from the start, T1, to the end, T21, is 0.5 seconds. This is effectively a rate of 48 WPM. The speed is changed simply by changing the duration of the Clock. However, changing the speed would not change the timing relationships.

---

• Page 1 - Keyer Timing
• Page 2 - Paddle Input and Dot/Dash Memory
• Page 3 - Output and Power/Ground.

What follows is the schematic for the Accu-Keyer. I split the keyer schematic into three logical sections. You may notice that the schematic looks a little different than the original schematic from the QST article or the Handbook. That's because I have some very definite notions on how a schematic should be drawn.

Accu-Keyer Modifications

The schematics above, are the Accu-Keyer as it was originally presented. But shortly after the initial publication, feedback from the users/builders was starting to pour in.

Trailing Dits

Trailing Dits - Tony Berg, W1OT, wrote an article in the October 1994 issue of Morsum the Magnificat, the Morse Magazine, page 18. The article was on keyer designs that have a "Auto Character Space" feature and/or a "Dot/Dash Memory" feature. The Accu-Keyer fit right into that catagory. The original article has more detail than I will be providing, and is a recommended read.

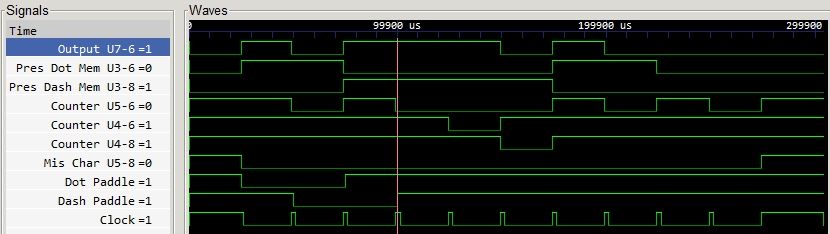

In the article, W1OT makes the point that, with a keyer it is possible to generate sloppy characters or characters with unwanted training dots. In particular, this is with keyers that have an "Auto Character Space" feature and/or a "Dot/Dash Memory" feature. An example might be sending the letter "A". To send the letter "A" you must close the dot paddle followed by the dash paddle. Then, you then must release the dot paddle before the dash starts. Otherwise the "Dot/Dash Memory" will record another dot which will be generated after the dash making the "A" a "R". At slow speeds, that's not an issue. But at higher speeds, the release time becomes smaller and smaller.

The drawing on the right is the "fix" for the Trailing Dots on the Accu-Keyer, that was published in QST, July 1978 by Ronald Hanthorn, K8AW (Bottom of page). I changed the reference designators (U1, U2 ⇒ U8, U9, respectively), shown in the QST article. This was to eliminate any confusion with the Accu-Keyer schematic. The modification is designed to eliminate the trailing dot, but maintain dot insertion for such letters as K. When implementing this fix, the Dot-Input lead of the keyer should be disconnected from the key jack and wired to the output U9B, Pin 6.

I also found this fix in a document titled "Accu-Keyer Manual". The document was a bit crude and contained a schematic of the Accu-Keyer and a different layout than the original. The Trailing Dot Fix was scribbled in at the end. But, that drawing had a different signal going into U2A Pin 1.

---

Weight Control

Another modification is the addition of Weight, that was published in QST, February 1978 by Hal Kennedy, N4GG. The article did a good job of describing the modification and why it might be needed. But the artical skipped the detail on exactly where the bottom terminal connects. The article only says "back to the clock-speed-determining components". Aren't most of the components in the oscillator, clock-speed-determining components?

However, the lack of detail was handled in the Feedback section of the next issue of QST. In the update it said:
The weight-control drawing appearing in "Hints and Kinks" for February, 1978, should have indicated that the 47KΩ resistor is to be connected to C1, R4, CR1, and Q1.

The schematic on the right has been adjusted.

---

Sidetone Oscillator I

The original Accu-Keyer article did not include a Sidetone Oscillator. But adding one is relatively simple. On the right is the schematic of one Sidetone Oscillator, suggested by Hal Morris, W4VUO/3, in the June 1975 issue of QST Magazine. Hal used the same TTL logic as used in the original Accu-Keyer. The input for the sidetone comes from the CW_OUT signal on Page 1 of the Accu-Keyer.

---

Sidetone Oscillator II

This sidetone oscillator was published in the 1976 Radio Amateur Handbook, Page 365 along with the schematic of the original Accu-Keyer, Accu-Memory, alternate power supply, and Cathode Keying circuit. Below is a quote from the article.

Should a keying monitor be desired, the diagram on the right may be used to construct a circuit which will afford plenty of volume and stable pleasing tone. The circuit is a modified version of the code-practice oscillator appearing in Chapter 1. Equipped with such a monitor, the Accu-Keyer becomes ideal for conducting code practice sessions for small and medium-sized groups.

---
